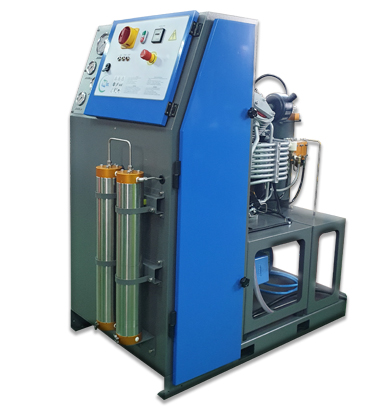

It is a large-capacity vertical type, and the front control panel and control
system that can check the pressure at each stage maximize user
convenience.
Additionally, the purification system that integrates MSL compressor technology allows you to use purer air.
Intake: Air / N2 etc(Air, Nitrogen, etc.)
Working pressure: 200/300 Bar
Max pressure: 420 Bar ( 6000 PSI )
F.A.D: 400 ~ 700L/min [30 ~ 200 bar, 20 °c, ±5%]
Power: 10 ~ 20HP
Stage: 4 stage compression
Size(mm): L830 x W1390 x H1475
Weight(kg): 400 ~ 450
Charging time:
1)10L SCUBA 50-200 bar: 2 ~ 4 min
2)6L SCBA 50-300 bar: 2 ~4 min
-Product Shape and specifications vary depending on order specifications and
performance improvement.
