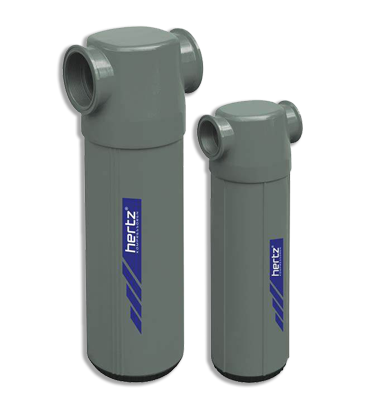

It is designed to optimally separate moisture and dust mixed with compressed air and gas. The unique centrifugal separation structure minimizes pressure loss and is based on energy-saving operation. Hertz's water separators are available in pipe sizes from 1/4" to 3" NPT and can be used up to 2200 m³/hr. In addition, it performs optimal functions to ensure high purification efficiency of the filter line and longer filter usage time.
| Model | Capacity | Connection | Maximum Working Pressure | Maximum Working Temperature | Housing Dimensions (mm) | ||||
| m3/min | cfm | Size | bar | 0C | A | B | C | D | |
| HG 25 WS | 0.42 | 15 | G ¼" | 16 | 80 | 102 | 257 | 235 | 155 |
| HG 100 WS | 1.67 | 59 | G ½" | 16 | 80 | 102 | 257 | 235 | 200 |
| HG 200 WS | 3.33 | 118 | G ¾" | 16 | 80 | 123 | 280 | 253 | 270 |
| HG 300 WS | 5 | 177 | G 1" | 16 | 80 | 123 | 280 | 245.5 | 370 |
| HG 600 WS | 10 | 353 | G 1 ½" | 16 | 80 | 123 | 295 | 259.5 | 460 |
| HG 1200 WS | 20 | 706 | G 2" | 16 | 80 | 160 | 481 | 440 | 565 |
| HG 2200 WS | 36.7 | 1295 | G 3" | 16 | 80 | 194 | 547 | 490.5 | 585 |
