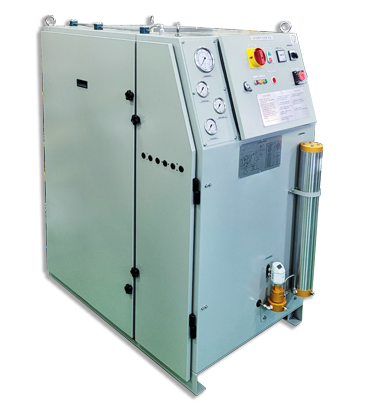

This product fills the compressed air needed for Navy & Marine Corps diving and landing operations and other fleet maintenance. It is a fixed type that can be mounted on base.
ㆍExternal dimensions(mm) : 830mm(L) × 1350mm(W) × 1470mm(H)
ㆍ Weight(kg): 425
ㆍInstallation method: Piston reciprocating type
ㆍ Maximum working pressure: 500 bar (31 MPa)
ㆍSTAGE: 4-stage compression method with X-type cylinder arrangement
ㆍAutomatic operation: automatic stop and drain
ㆍAir purity detection function
ㆍFilter replacement cycle alarm function
ㆍEmergency stop and pressure selection function
ㆍMotor used: 10 HP (7.5㎾) 3Ø
ㆍFilling time: 10 L container 200 bar – within 5 minutes [50-300 bar, 20℃, ±5%]
6.8L container 300 bar – within 5 minutes [50-300 bar, 20℃, ±5%]
ㆍIntegrated triple safety device and purification filter
ㆍAir purity and device contamination prevention function when filter is damaged
ㆍLow-noise cabinet and all stainless steel piping for the air system is applied
