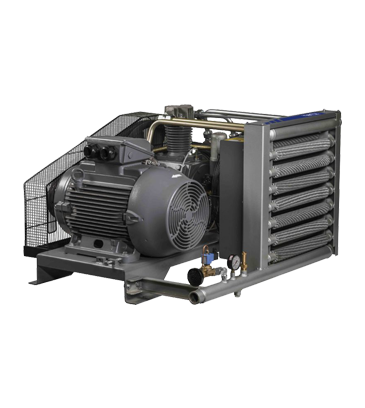

AIR COMPRESSOR FOR INDUSTRY

Model	Pressure				Capacity (intake)						Motor Power	Connection Size
	Minimum		Maximum		7 bar/100 psi		10 bar/150 psi		12 bar/175 psi		kW/hp		Dimensions (in,)			Weight Ibs
	bar	psi	bar	psi	m3/min	cfm	m3/min	cfm	m3/min	cfm			Length	Width	Height
HPC BOOSTER 10	15	218	40	580	2.07	73	2.98	105	3.43	121	7,5/10	1" NPT	50.6	32.5	29.7	591
HPC BOOSTER 15	15	218	40	580	2.42	85	3.48	123	4	141	11/15	1" NPT	50.6	32.5	29.7	628
HPC BOOSTER 20	15	218	40	580	3.66	129	5.26	186	6.06	214	15/20	1" NPT	53.4	32.3	29.8	661
HPC BOOSTER 25	15	218	40	580	4.83	171	6.94	245	8	282	18,5/25	1 1/4" NPT	56	34.4	29	761
HPC BOOSTER 30	15	218	40	580	5.49	194	7.89	279	9.09	321	22/30	1 1/4" NPT	56	34.7	29	860
HPC BOOSTER 40	15	218	40	580	6.59	233	9.47	334	10.9	385	30/40	1 1/4" NPT	56	38.3	29	939

Compressor capacity standard: 40 liters (0-30 bar)

-When charging, a 15 to 30% difference in charging time occurs depending on temperature and usage time.

ㆍIntake pressure control

ㆍSafety system installed

ㆍHigh pressure switch

ㆍIncludes manual drain valve

ㆍNon-return valve

ㆍBelt guard system

ㆍOutlet discharge pressure monitor installed

ㆍApproximately 20,000 companies operating around the world, including PET container companies and automobile testing laboratories

ㆍBasic installation of system

ㆍAutomatic discharge system for Loadless start

ㆍEquipped with highly durable bearings

ㆍLoadless intake filter and low noise device

ㆍCan be used for a long time by supplying connecting rod oil

ㆍOil level indicator

ㆍLeakage prevention BLOW DOWN discharge valve

*Product Shape and specifications vary depending on order specifications and performance improvement
