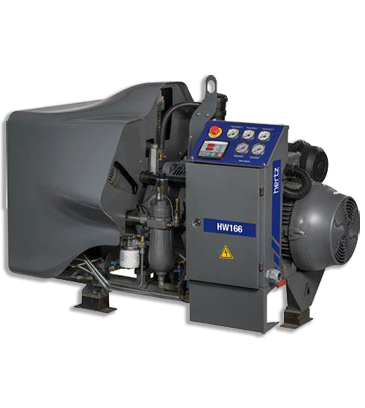

The HPC-W series is a product with high quality, high durability, and excellent continuous mobility. Particularly suitable as a solution for pressure testing and gas storage.
| Model | Pressure | Capacity (intake) | Voltage Frequency | Motor Power | Connection Size | Dimensions (mm) | Weight | Noise | ||||||
| Min. bar - psi | Max. bar - psi | L/min | cfm | V/Hz | kW/HP | Length | Width | Height | kg | dB(A) | ||||
| HW 52 | 40 | 580 | 12 | 174 | 862 | 30.5 | 460/60 | 11/5 | G 1" | 1300 | 1100 | 1030 | 425 | 80 |
| HW 64 | 40 | 580 | 12 | 174 | 1077 | 38.1 | 400/50 | 11/5 | G 1" | 1300 | 1100 | 1030 | 411 | 80 |
| 1445 | 51.1 | 460/60 | 15/20 | 1580 | 1175 | 1100 | 461 | 81 | ||||||
| HW 108 | 40 | 580 | 12 | 174 | 1806 | 63.8 | 400/50 | 15/20 | G 1" | 1580 | 1175 | 1100 | 421 | 81 |
| 2214 | 78.2 | 460/60 | 22/30 | 685 | 83 | |||||||||
| HW 166 | 40 | 580 | 12 | 174 | 2767 | 97.7 | 400/50 | 30/40 | G 1" | 1580 | 1175 | 1100 | 630 | 83 |
| 2821 | 99.6 | 460/60 | 30/40 | 1640 | 772 | 84 | ||||||||
| HW 210 | 40 | 580 | 12 | 174 | 3526 | 124.5 | 400/50 | 37/50 | G 1" | 1640 | 1175 | 1100 | 680 | 84 |
*Compressor capacity standard: 500 liters (0-30 bar)
When charging, a 15 to 30% difference in charging time occurs depending on temperature and usage time.
ㆍUser-centered control panel: Displayed pressure and temperature at each stage
ㆍManufactured for easy maintenance
ㆍCompression stage: 2-stage compression (W series)
ㆍFormat: Horizontal open type
ㆍMaximized cooling efficiency with blowing guide air cooling structure
ㆍLarge capacity, high horsepower, excellent continuous mobility
ㆍEasy to move and install
ㆍSafety valve at each stage, automatic stop function, check valve, pressure gauge at each stage
ㆍLoadless start automatic drain
ㆍLong-life bearings
ㆍAir-cooled Aftercooler
ㆍEquipped with low noise intake filter
ㆍOil lubrication: Oil pump type
ㆍLoading interval: Max. 20 min. possible
