AIR COMPRESSOR FOR INDUSTRY

Model	Pressure		Capacity (intake)		Motor Power kW/HP	Connection Size	Dimensions (mm)			Weight kg
	bar	psi	L/min	cfm			Length	Width	Height

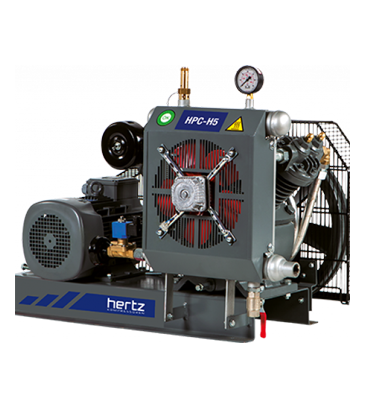

HPC-H5	40	580	507	17.9	5,5/7	G 3/4"	933	576	662	153
HPC-H15	40	580	1060	37.4	11/15	G 1"	1312	1213	718	363
HPC-H20	40	580	1657	58.5	15/20	G 1"	1295	897	832	422

Compressor capacity standard: 500 liters (0-30 bar)

When charging, a 15 to 30% difference in charging time occurs depending on temperature and usage time.

ㆍUser-centered control panel: Displayed pressure and temperature at each stage

ㆍManufactured for easy maintenance

ㆍCompression stage: 2-stage compression (M series)

ㆍFormat: Horizontal open type

ㆍMaximized cooling efficiency with mandatory separate air cooling structure

ㆍBelt type, equipped with belt tension adjuster

ㆍSafety valve at each stage, automatic stop function, check valve, pressure gauge at each stage

ㆍLoadless start automatic drain

ㆍLong-life bearings

ㆍAir-cooled Aftercooler

ㆍEquipped with low noise intake filter

ㆍOil lubrication: Splash type, improved durability at less than 800 rpm

*Product Shape and specifications vary depending on order specifications and performance improvement.
