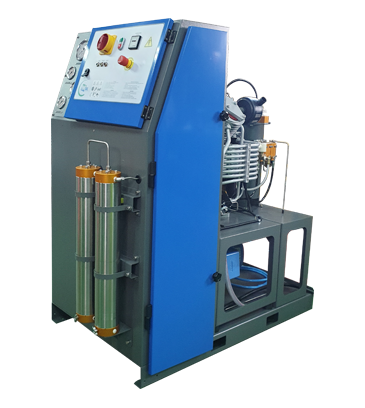

Industrial compressed air and gases are today an essential part of all types of production and quality processes. MSL Compressor's ultra-high pressure compressor line is widely used today in all industrial fields, including as a power source, manufacturing process, and control and testing for various process equipment.
| Model | Power(HP) | Capacity(lt/min) | Stage | rpm | Dimensions (mm) | Weight (kg) | ||
| Width | Depth | Height | ||||||
| MSH 400 EV | 10 | 400 | 4 | 1100 | 1340 | 910 | 1500 | 490 |
| MSH 500 EV | 15 | 500 | 4 | 1250 | 1340 | 910 | 1500 | 490 |
| MSH 600 EV | 20 | 600 | 4 | 1350 | 1340 | 910 | 1500 | 490 |
| MSH 700 EV | 20 | 700 | 4 | 1500 | 1340 | 910 | 1500 | 490 |
ㆍCompression stage: 4 stage compression
ㆍPressure range: 50 - 330 bar (420 bar optional)
ㆍType: Vertical open type (easy to maintain)
ㆍBelt driven
ㆍDischarge range: 400 - 700 Liter/min
ㆍPurification filter: MP41/61
ㆍConnector quantity: 1 to 2
ㆍControl: ON/OFF switch, elapsed time meter, power switch
ㆍCompressed gas: Air
ㆍLong-life bearings
ㆍOil pump
ㆍAir-cooled / final pressure gauge
ㆍPower range: 10 - 20 HP
ㆍEquipped with safety valves at each stage
ㆍManual drain / single pressure
