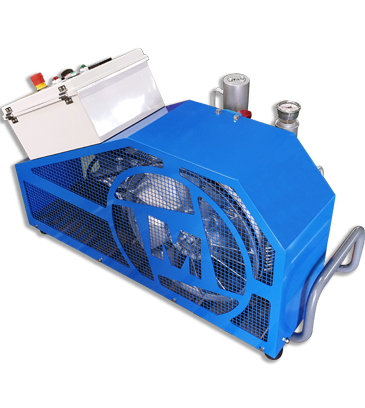

Industrial compressed air and gases are today an essential part of all types of production and quality processes. MSL Compressor's ultra-high pressure compressor line is widely used today in all industrial fields, including as a power source, manufacturing process, and control and testing for various process equipment.
| Model | Power(HP) | Capacity(lt/min) | Stage | rpm | Dimensions (mm) | Weight (kg) | ||
| Width | Depth | Height | ||||||
| MSH 150 EH | 5 | 150 | 3 | 1100 | 1115 | 540 | 710 | 125 |
| MSH 200 EH | 7.5 | 200 | 3 | 1200 | 1115 | 540 | 710 | 135 |
| MSH 250 EH | 7.5 | 250 | 3 | 1300 | 1115 | 540 | 710 | 135 |
ㆍCompression stage: 3 to 4 stage compression
ㆍPressure range: Max 330 bar
ㆍType: Horizontal open/lightweight portable type (HAND LIFT)
ㆍBelt driven / air cooling
ㆍDischarge range: 150 - 250 Liter/min
ㆍConnector quantity: 1 to 2
ㆍControl: ON/OFF switch, elapsed time meter
ㆍCompressed gas: Air
ㆍOil pump
ㆍAir-cooled / final pressure gauge
ㆍPower range: 5 - 7.5 HP
ㆍEquipped with safety valves at each stage
ㆍManual drain / single pressure (automatic stop and start applied)
